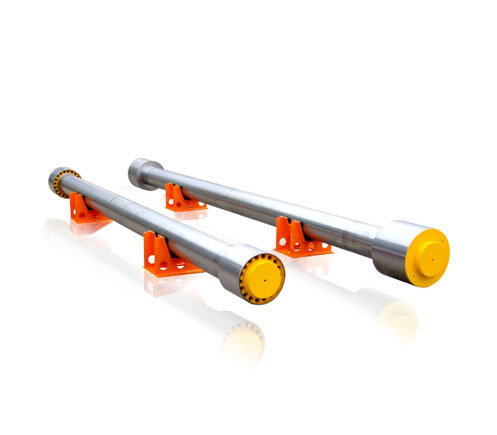

High precision turbine false shaft

    The steam turbine specific false shaft is made of high-quality seamless thick walled steel pipes, which have undergone aging treatment and precision machining. During the overhaul process of the power plant, it can simulate the alignment and measurement of the turbine rotor in the cylinder towards the axis center, baffle groove center, steam seal clearance, etc. The dummy shaft is lightweight and easy to use, which can save the time and workload required to lift the turbine rotor into the cylinder, reduce maintenance costs, and shorten the maintenance period.
consult
24-Hour Hour Hotline:
0312-3277385/3277530

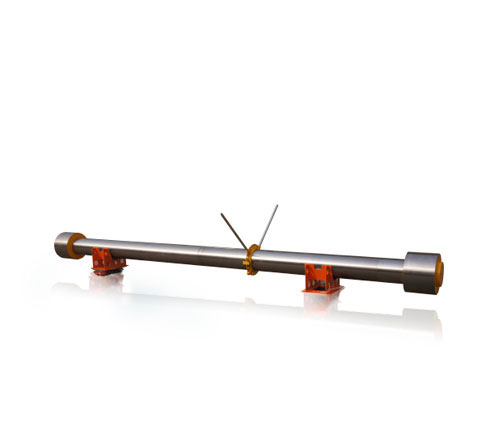

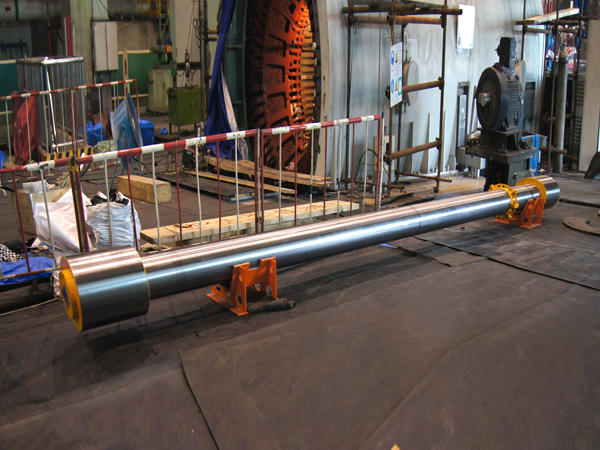

    Steam turbine false shaft, lightweight, high overall dimensional accuracy, good smoothness, with deflection values marked at fixed intervals, and intuitive measurement data. It can replace the steam turbine rotor to complete center calibration and clearance adjustment in the high, medium, and low pressure cylinders of the steam turbine, reduce the number of times the steam turbine rotor is lifted into the cylinder, and reduce the risk of multiple lifts of the steam turbine rotor into the cylinder. The high-precision steam turbine false shaft is equipped with a dedicated handwheel for manual turning, which is easy and flexible. It is also equipped with a dedicated false shaft lifting and storage seat, which facilitates the on-site movement and storage of the false shaft.
