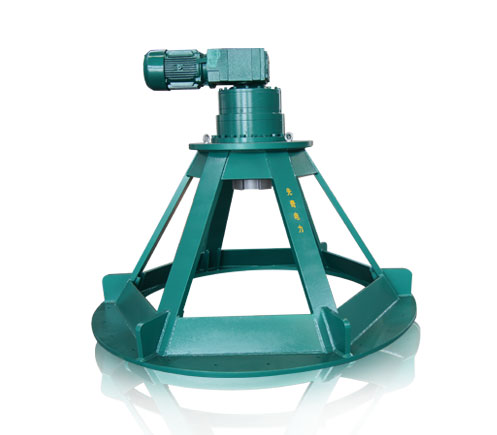

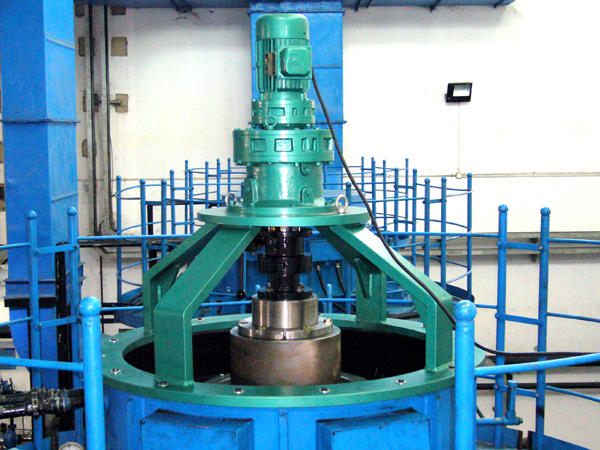

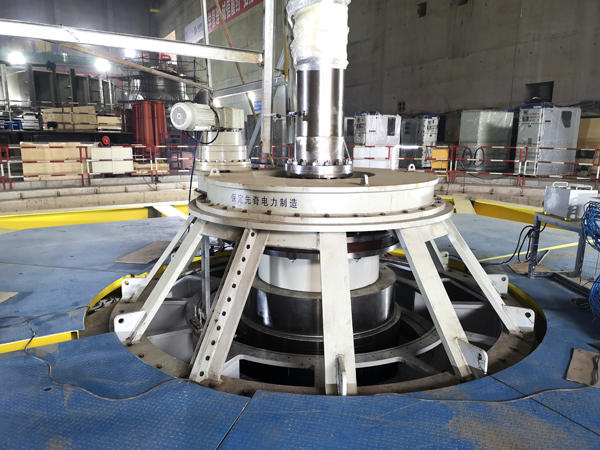

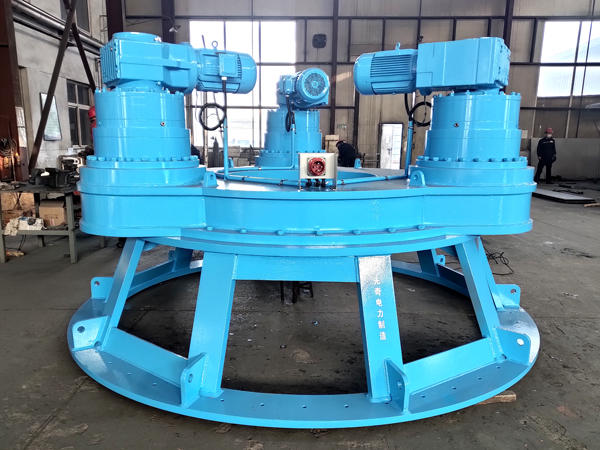

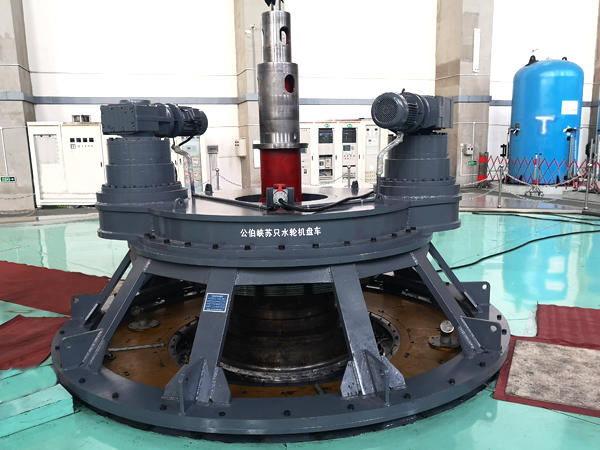

The SDPC type hydraulic turbine electric turning gear is a specialized equipment used for the installation and maintenance of hydroelectric generator units in hydropower stations. It can easily meet the requirements of rotating the rotor of the entire shaft system of the water turbine generator set, and can safely and smoothly verify the center of the rotor to the wheel and the clearance between various parts in a very short time. It abolished the traditional and backward methods of manual turning, mechanical turning (wire rope turning), and electrical turning, greatly improving the efficiency of installing and repairing water turbine generator sets.

Product Features

（1）The design is lightweight and practical, with simple and convenient installation. It can continuously rotate the rotor in both forward and reverse directions or perform forward and reverse point movement.

（2） Low output speed (0.5~1 rpm), high output torque, smooth rotation, accurate rotor stop when turning, and no coasting phenomenon.

（3）After turning the rotor in place, pressing the reverse button can ensure that the measured rotor is in a completely free state without contact, and the measurement data is true and accurate.

（4）Long service life, high safety, and minimal maintenance workload.

（5）Portable electronic control box is compact, lightweight, flexible to operate, and has a wide range of movement.
