Product Features
    Using the principle of electromagnetic heating, the motor wheel is heated to create an expansion gap with the shaft, relieve the interference fit between the motor wheel and the shaft, and then quickly pull out the motor wheel.

    The rapid heating process adopts high-frequency induction heating: the three-phase 50HZ AC power supply is converted into high-frequency AC power to supply the load, and through a parallel oscillation circuit composed of the heating inductor coil and high-frequency capacitor of the load, the high-temperature resistant inductor coil generates induced current (eddy current) for rapid heating under the action of the induced magnetic field.

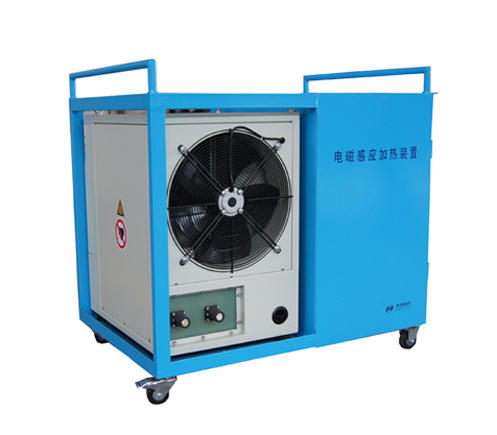

    The motor to wheel heater mainly consists of high-frequency induction heating power supply, electrical control cabinet, high-temperature resistant heating coil, thermocouple temperature measurement system, operation control system, etc.

    Its performance mainly includes: automatic detection of heating load working current; Automatic identification of the inductance control system for inductive coils; Automatic shutdown due to non-compliance between overcurrent and inductance in safe operation design parameters; The main control circuit can adjust the output load power parameters and resonant frequency parameters; When the work reaches the set temperature and time, it will automatically shut down; Has overcurrent and overload protection function; Equipped with automatic tripping function for short circuit and leakage.
