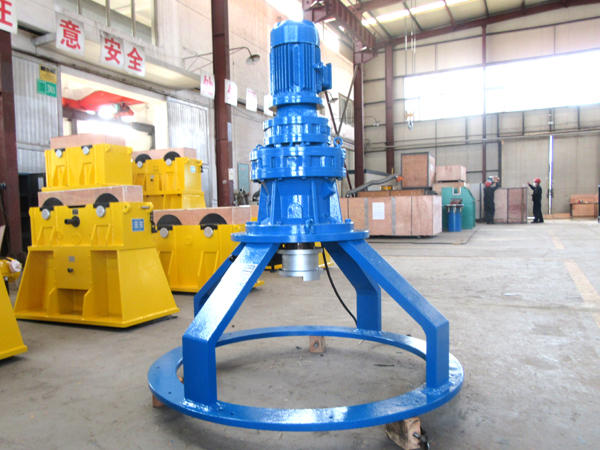

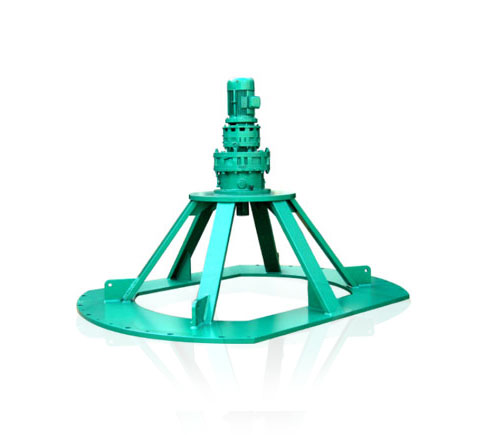

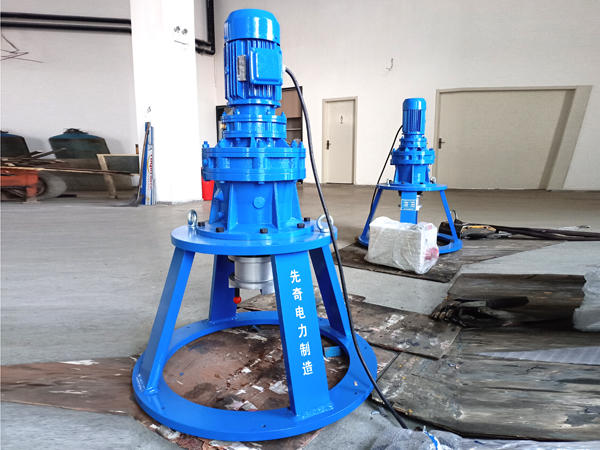

LBPC型循环水泵电动检修盘车装置，是大型火力发电厂在检修立式循环水泵时使用的专用检修设备，该设备的使用解决了电厂立式循环水泵检修全部靠人力盘动转子的问题，使用检修盘车能减轻工人的劳动强度，提高检修质量，缩短检修工期，提高了检修工作当中的安全性。The LBPC type electric maintenance reel device for circulating water pumps is a specialized maintenance equipment used in large thermal power plants to maintain vertical circulating water pumps. The use of this equipment solves the problem of relying solely on manual rotation of the rotor for maintenance of vertical circulating water pumps in power plants. The use of maintenance reel can reduce the labor intensity of workers, improve maintenance quality, shorten maintenance period, and improve safety in maintenance work.

产品特点 Product features

(1)设计简单实用、重量轻、安装方便，可正反转连续或点动盘动转子。The design is simple and practical, lightweight, and easy to install. It can rotate the rotor continuously in both forward and reverse directions or by jogging.

(2)输出转速低（0.5～１转/分），输出扭矩大，转动平稳，盘动转子停点准确，无惰走现象。Low output speed (0.5-1 rpm), high output torque, smooth rotation, accurate stopping point of the rotor when turned, and no coasting phenomenon.

(3) 盘动转子到位后，点动反向转动按钮，能保证被测转子无接触，安全处于自由状态，测量数据真实、精确。After turning the rotor in place, pressing the reverse rotation button can ensure that the measured rotor is in a non-contact, safe and free state, and the measurement data is true and accurate.

(4)便携式电控箱小巧、轻便、操作灵活、移动范围大。Portable electronic control box is compact, lightweight, flexible to operate, and has a wide range of movement.
